High Rejection, Low Fouling Brackish Water RO Elements
The WK®-Series family of proprietary thin -film reverse osmosis membrane are characterized by high flux and high sodium chloride rejection.
WK®-Brackish Water Elements are selected when high rejection and operating pressures as low as 225 psi (1,550 kPa) are desired. These elements are recommended for challenging waters and wastewaters , brackish water with salt concentration (TDS) lev-els between 1,000 and 10,000mg/l or when very high salt rejection of mono- valent ions is required.
WK®-high rejection brackish water elements fea- ture a Fiberglass outer wrap and female end con- nections.

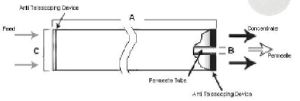

Figure 1: Element Dimensions Diagram

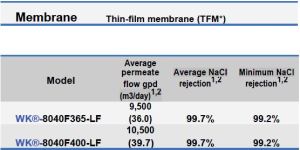

Table 1: Element Specification
1 Average salt rejection after 24 hours operation. Individual flow rate may vary +25%/-15%.
2 Testing conditions: 2,000ppm NaCl solution at 225psi (1,550kPa) operating pres-sure, 77°F, pH7 and 15% recovery.
Table 2: Dimensions and Weight
1These elements are bagged wet (WT) before shipping.
2Internal diameter.
Table 3: Operating and CIP parameters
Ideal for: reverse osmosis plant managers and operators dealing with challenging waters and wastewaters and seeking consistent high performance, long element life, increased productivity and higher water quality coupled with excellent fouling resistance.
Feed Spacer(Thickness (mil)):34-LDP
